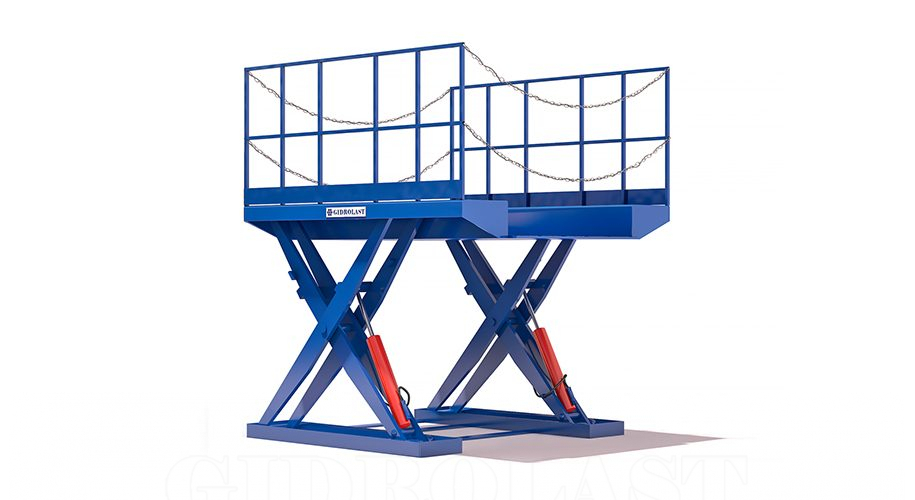

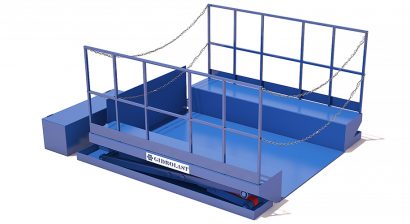

Low-profile scissor lift table
E-mail: sale@gidrolast.com
International sales team
Technical specifications
| Load capacity:up to 2000 kg; |
| Platform length:up to 3000 mm; |
| Collapsed height (low profile): 100 mm; |
| Maximum lifting height:1500 mm; |
| Lifting / lowering time:10–30 seconds; |
| Power supply:220 V or 380 V. |
Description
The Gidrolast Low-Profile Scissor Lift Table is designed to simplify loading and unloading operations in warehouses, production facilities, and logistics centers.
Its ultra-low profile allows goods to be loaded directly from floor level without the need for loading ramps or recessed pits. Pallet trucks, forklifts, carts, and wheeled equipment can easily access the platform, enabling fast, safe, and efficient material handling.
The lift table provides ergonomic working heights, reducing operator fatigue while improving productivity during lifting and lowering operations.
Thanks to its low-profile design, the lift can often be installed directly on an existing concrete floor, eliminating the cost and complexity of pit construction while providing flexible installation wherever required.
The low-profile scissor lift table is ideal for:
Warehouse loading and unloading
Pallet handling operations
Production and assembly lines
Packaging stations
Logistics and distribution centers
Manufacturing facilities
Product details

- A. Remote hydraulic power unit.
- B. Wired pendant control.
- C. C. Diamond tread plate platform surface for enhanced traction and slip resistance.
- D. Limit switches for maximum lifting height control and automatic shutdown of the hydraulic power unit after the platform is fully lowered.
- E. Reinforced heavy-duty lifting platform.
- F. Anti-tilt stabilization system for increased platform stability during operation.
- G. Grease fittings (zerk fittings) for routine maintenance of all moving joints and pivot points.
- H. Flow control valves for smooth adjustment of lifting and lowering speeds.
- I. Hydraulic safety valves to prevent uncontrolled platform descent in the event of hydraulic pressure loss.
- J. Overload protection sensors.
- K. Side safety guards made of heavy-duty steel tubing.
