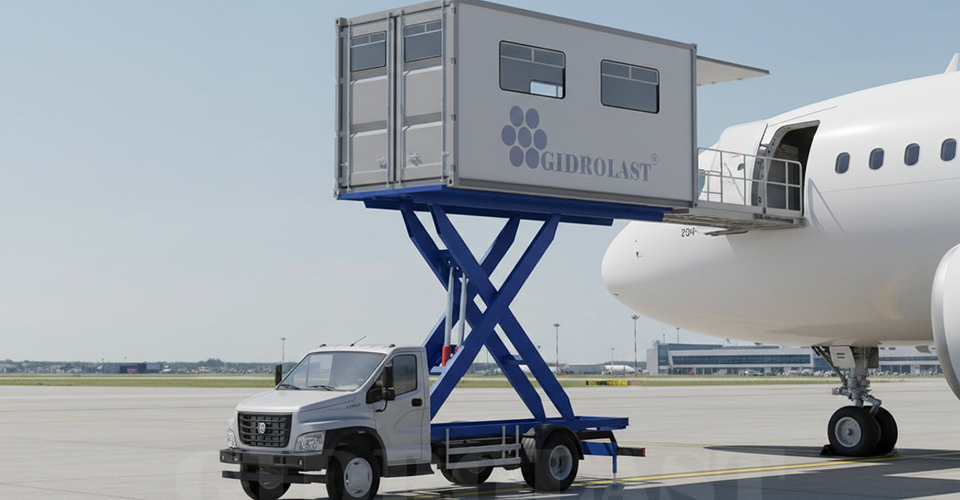

Truck-mounted hydraulic lift mechanism
E-mail: sale@gidrolast.com
International sales team
Technical specifications
| Load capacity:up to 15000 kg; |
| Lift type:Scissor lift; |
| Platform dimensions:up to 6000 × 3000 mm; |
| Maximum lifting height:up to 6000 mm; |
| Minimum platform height:from 500 mm; |
| Lifting/lowering time:from 20 seconds. |

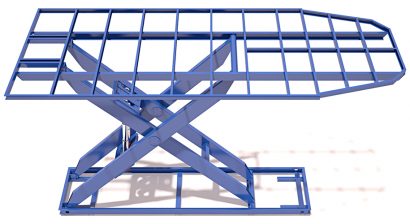

Product details
- A. Telescopic hydraulic cylinders providing smooth, reliable lifting performance and high load capacity.
- B. Grease fittings (lubrication nipples) installed on all pivot points and moving joints to facilitate routine maintenance and extend service life.
- C. Flow control valves for precise adjustment of lifting and lowering speeds.
- D. Hydraulic safety (hose burst) valves preventing uncontrolled platform descent in the event of hydraulic pressure loss or hose failure.
- E. Service access hatch providing convenient access for inspection and maintenance of the lifting mechanism.
